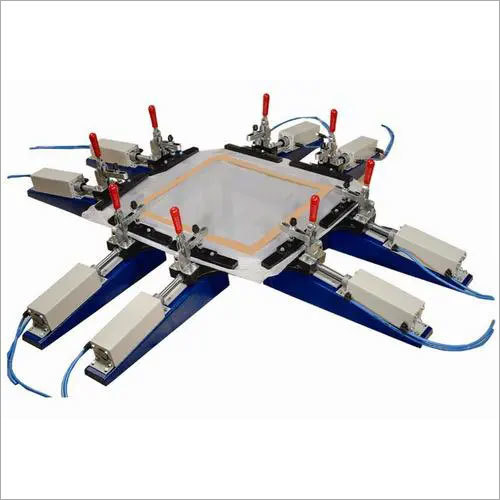

Stretching Clamp

Stretching Clamp
Stretching Clamp
Product Code : 01
Product Description

Since 2008, we are engaged in manufacturing and supplying a technically advanced array of Stretching Clamp. The clamp is used to make the stencil, as it can stretch the polyester mesh on the screen frames. Frame profile height of the clamp can be easily adjusted with the help of adjusting knob. We manufacture the clamp with the help of our expert personnel team, using optimum grade materials. Moreover, we offer the Stretching Clamp at reasonable prices.

Features:

  • User - friendly control module

  • Maintenance-free

  • Easy frame size adjustment

TECHNICAL SPECIFICATIONS

CLAMP WIDTH                                   :           250 mm (25 cm)

FRAME PROFILE HEIGHT              :           25 - 40 mm

MAXIMUM MESH TESION               :           40 N/cm

AIR PRESSURE                                :           6 to 8 BAR

AIR CONSUMPTION/CLAMP          :           2.7 L/ Stroke

                                                                             (0.09 cfm / stroke)



FEATURES

  • SPECIALLY DESIGNED MODULAR PNEUMATIC STRETCHING CLAMPS IN TABLE TOP EXECUTION FOR ALL MESH TYPE.

  • CAPABLE OF ACHIEVING STRETCHING VALVES OF UP TO 4 N.

  • THE SIMPLE AND USER - FRIENDLY CONTROL MODULE IN WHICH THE CLAMPS ARE OPERATED BY MEANS OF MANUAL SPOOL VALVE.

  •  THE FRAME PROFILE HEIGHT CAN BE EASILY ADJUSTED WITH THE HELP OF ADJUSTING KNOB.
